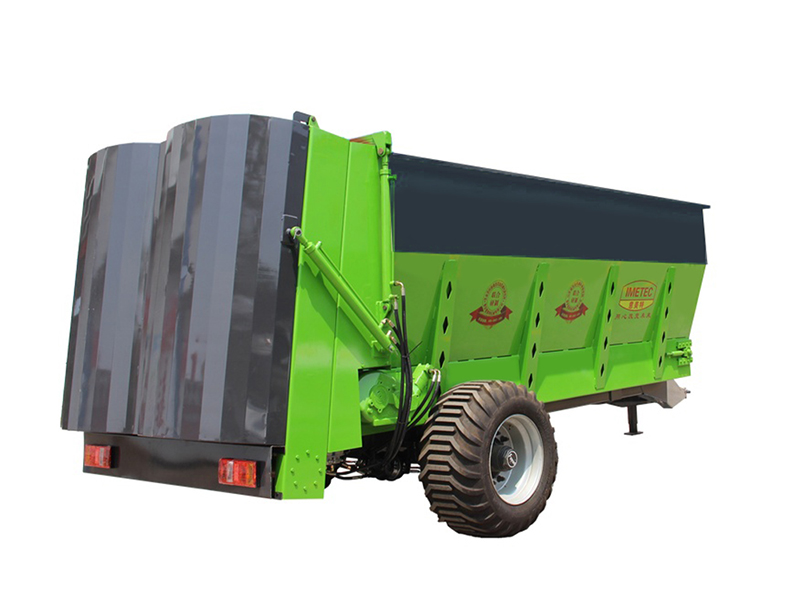

Solid Manure Manure Spreader for Sale
8CBM Solid fertilizer manure spreader performance characteristics:
1. The spreading part is mainly composed of a high-strength box, chain pushing system, speed change system and two high-speed rotating vertical augers. The spreading output can be adjusted by adjusting the material box and opening the height to control the productivity. The manure is evenly spread on the ground with a cross-sectional distance of 6-14 meters;
2. The spreading vehicle can effectively break up the organic fertilizer spread, and can quickly spread livestock manure on the field to reduce pollution, which has the significance of killing two birds with one stone;
3. It can not only realize the re-utilization of farm manure to the field, but also realize the transportation of silage and grain by replacing the rear device;
4. The independent suspension is easy to connect, and the power is connected to the rear output shaft of the tractor;
Solid Manure Fertilizer Spreader
Our manure spreaders are expertly designed for the precise and uniform application of manure, peat, or compost. Robust and powerful, these machines are perfect for effective fertilization on both small and large farms, with capacities ranging from 6 m³ to 24 m³.
Product Specifications:
We offer three assembly categories:
Vehicle-Mounted Type:
Capacity: 3-20 cubic meters
Customizable options: Disc or double-vertical auger
PTO Disc Type:
Capacity: 6-30 cubic meters
Customizable options available
PTO Double-Vertical Auger Type:
Capacity: 6-30 cubic meters
Customizable options available
Outstanding Advantages:
Low Center of Gravity & High Efficiency:
The spreader features tires positioned on both sides of the compartment, with a platform height of 1150 mm. This design allows for convenient loading, high spreading efficiency, stable operation, and faster travel speeds.
Uniform Spreading & Large Width:
Equipped with two vertical spiral crushing and spreading sticks, the spreader efficiently throws fertilizer up to 8-12 meters wide. It handles manure and sludge with water content of up to 80% effectively.
Strong Adaptability & Ground Protection:
Our rigid half-axle independent suspension and double-bridge wheels enable independent left and right movement, minimizing ground damage. The wheelbase is designed to align with ridge spacing, ensuring smooth operation.
Large Capacity & Low Residual Volume:
The inverted trapezoidal box structure enhances material flow and minimizes residual waste. Fence height can be increased by 200-350 mm, adding an additional 2-3 m³ of capacity.
Quality Components:
Both the gearbox and transmission are imported for superior performance. The durable boron steel crushing blades are wear- and corrosion-resistant, while the conveyor utilizes a high-strength mining round link chain for longevity.
This solid manure spreader is an ideal investment for effective, efficient, and environmentally friendly fertilization.

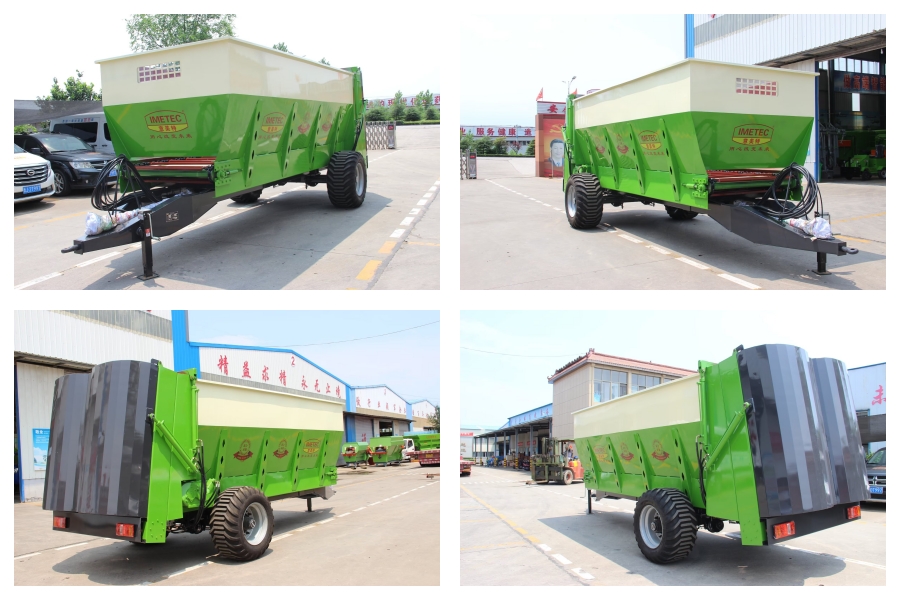

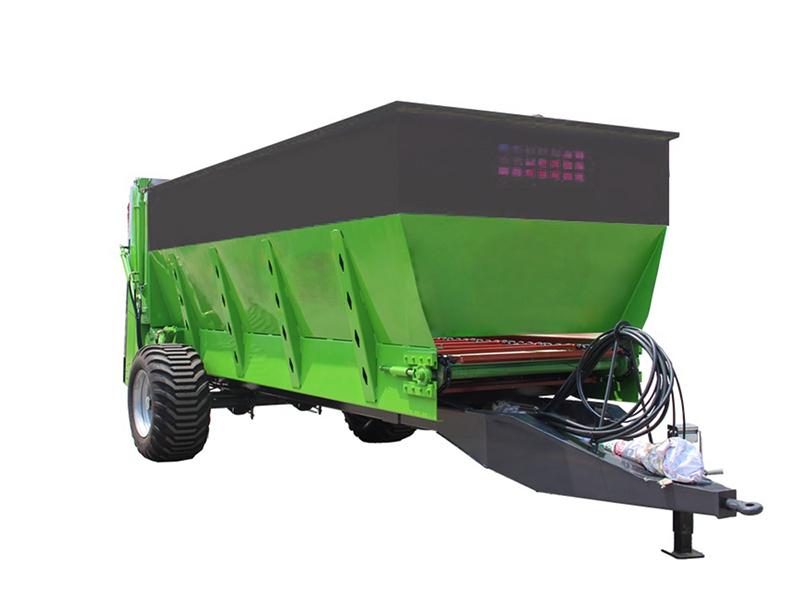

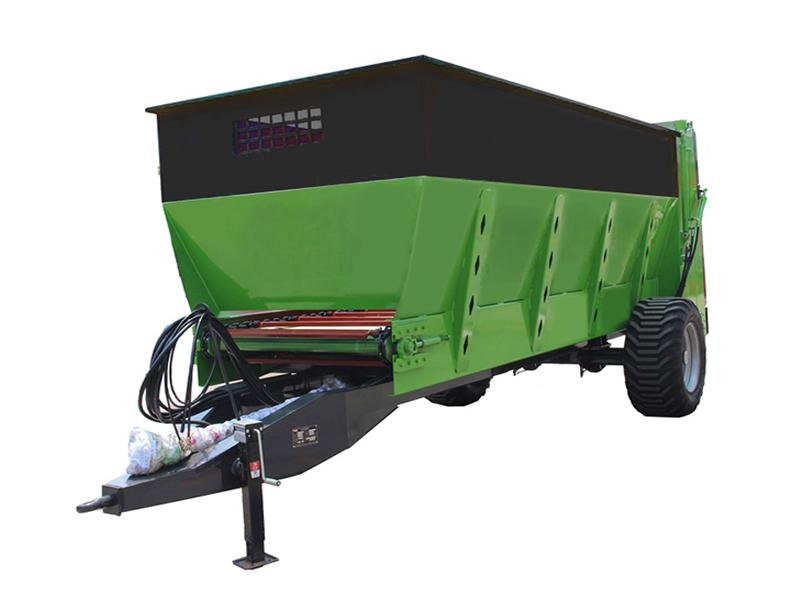

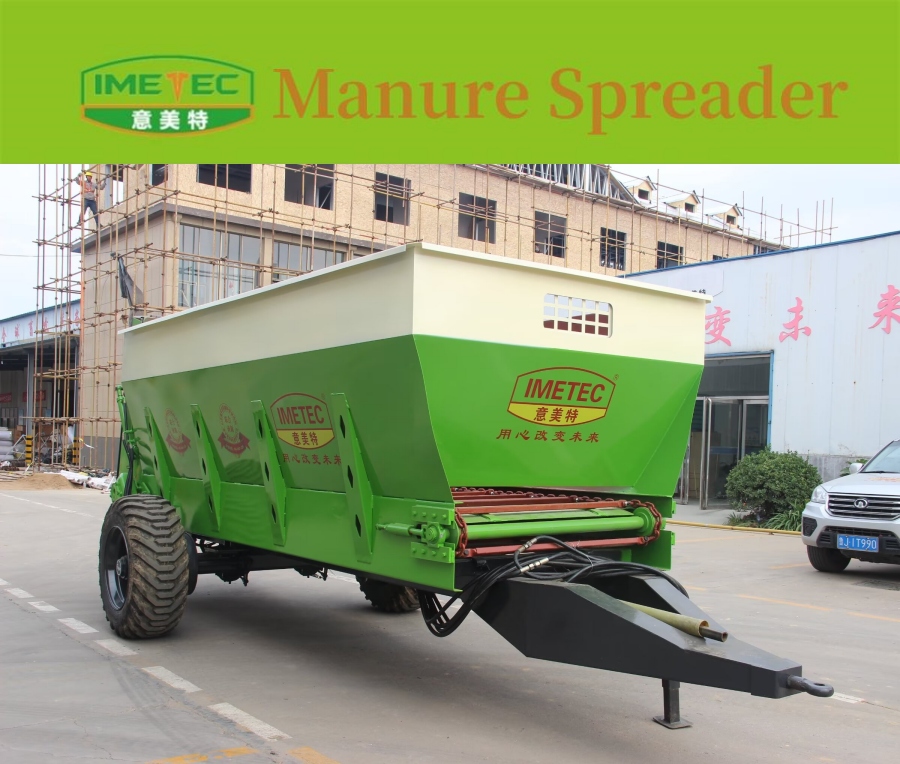

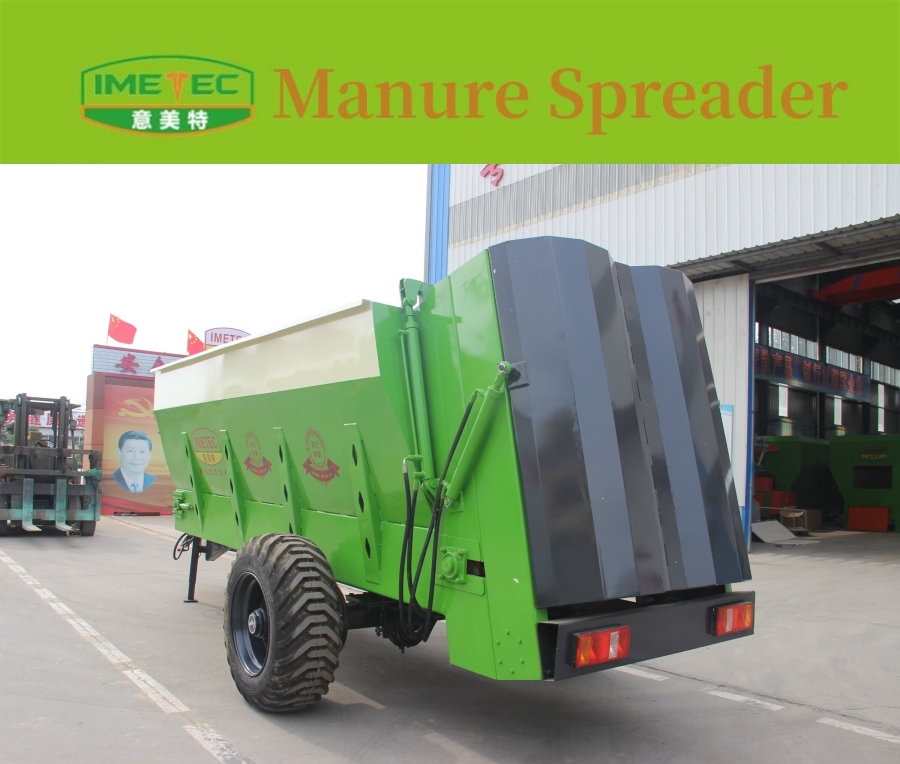

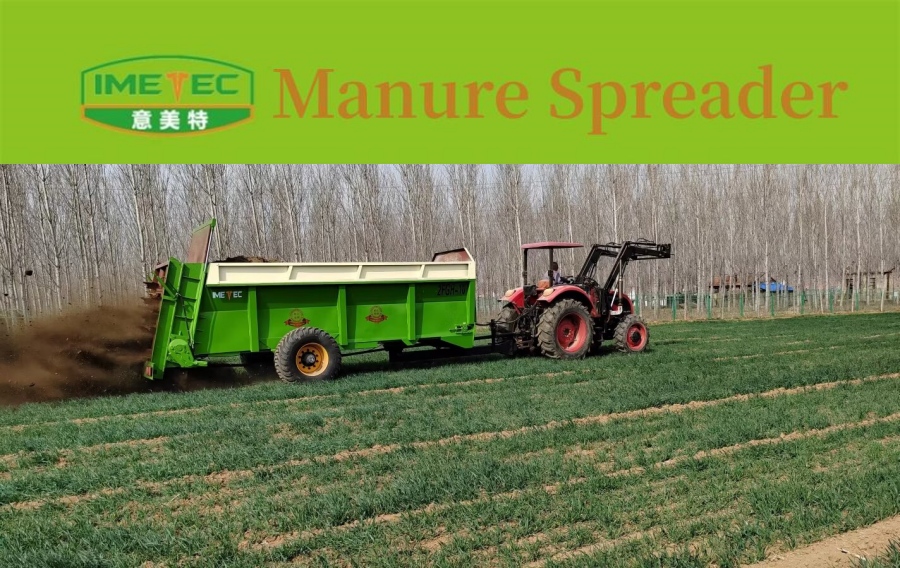

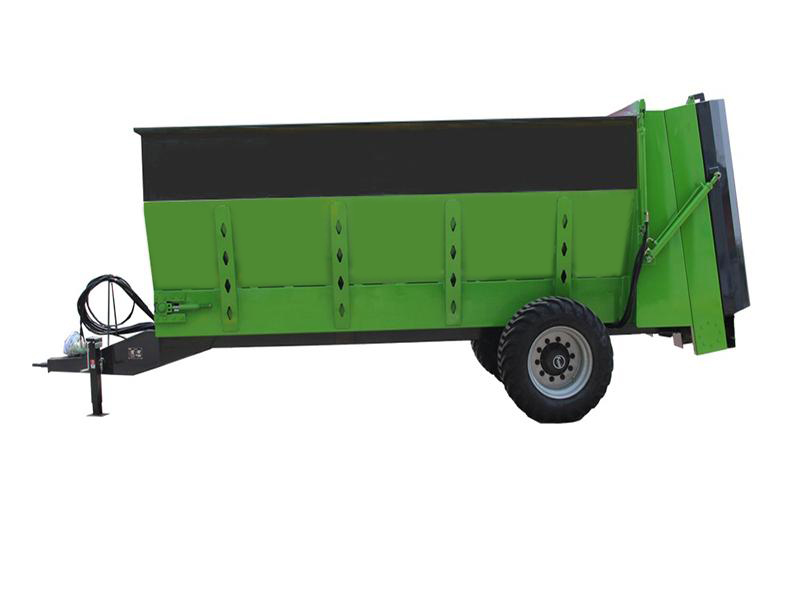

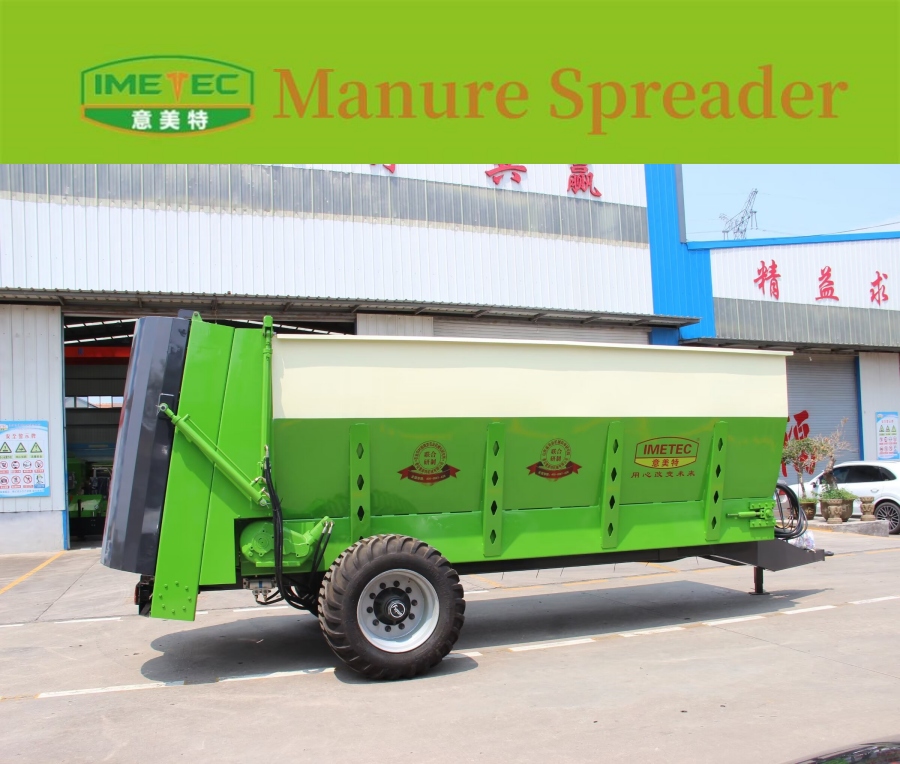

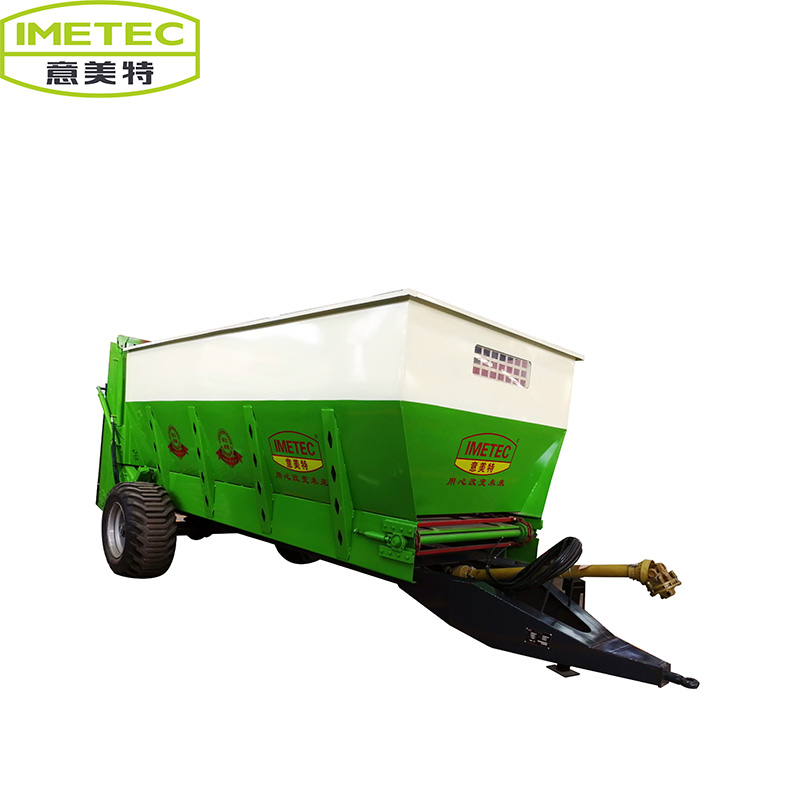

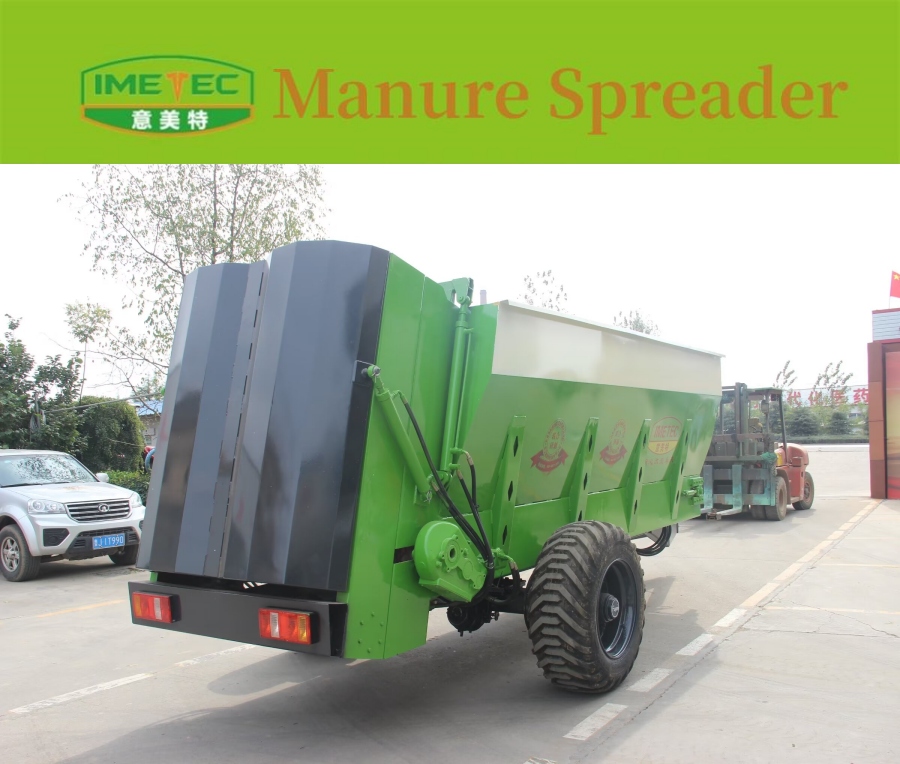

Pictures:
Product Parameters:
| MODEL | 9GPS-8 Manure Spreader |
| CAPACITY | 8m³ |
| TYPE | Trailed |
| NECESSARY POWER REQUIRED | 60-100Hp |
| METAL CUTTING | Laser |
| BOTTOM CHAIN | Special high strength brand Chains |
| CHAIN UNIT | 2 Chains in 2 rows |
| ACTION | Hydraulic GearBox |
| FOOTS | Special strong Chassis |
| CHASSIS | Reinforcement connections |
| BRAKE SYSTEM | Hydraulic |
| SPREADING UNIT | |
| ACTION TRANSMISSION | 540 Rev/Min by PTO Shaft from Tractor |
| AUGERS | 2 Unit Spreader Augers |
| DOOR | Sliding door For free the manure |

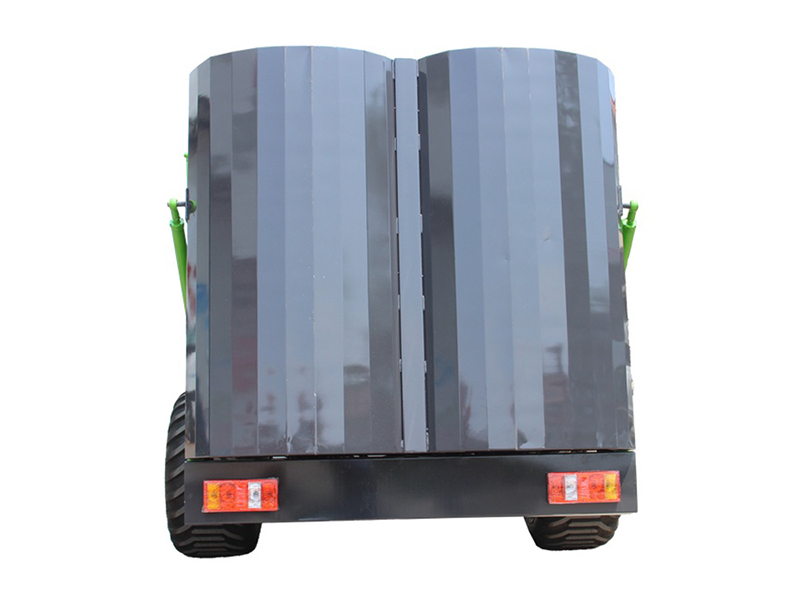

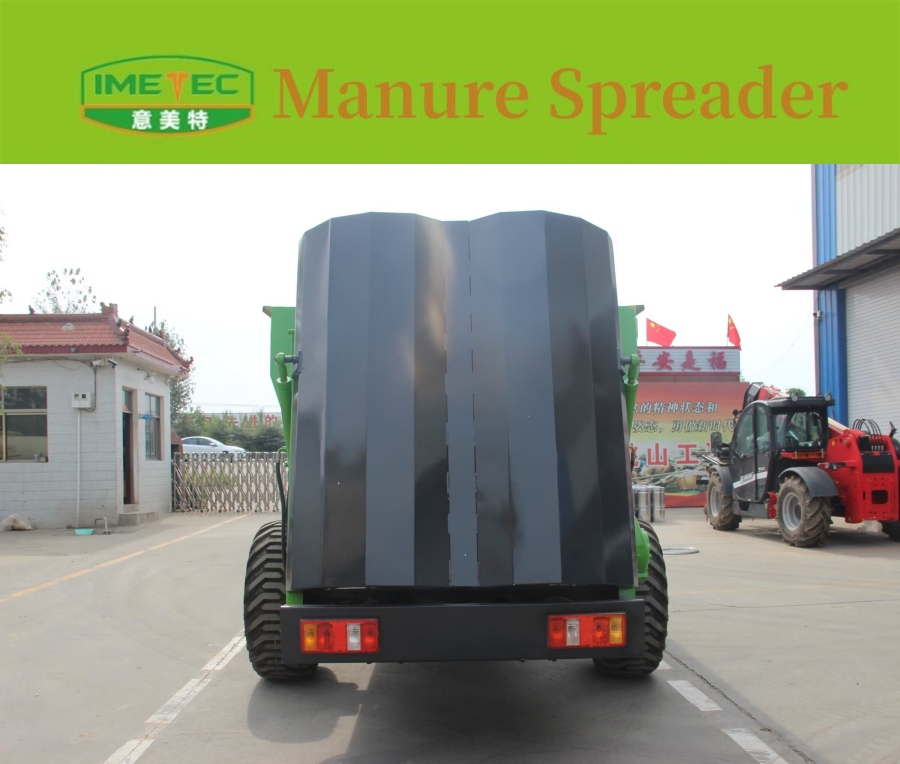

| COVER | Cover for close Augers during Road transport |
