Solid Manure Manure Spreaders
Solid fertilizer manure spreader performance characteristics:
Fine Shredding
Large diameter vertical augers generate a high tip speed to ensure a fine shredding action is achieved. A stepless auger with a shallow pitch ensures that material is well mixed and shredded before it is thrown from the machine
Even Coverage
Whether spreading fresh, well rotted or semi-solid farmyard manure, poultry litter, compost or waste products, deliver an even, fine and wide spread pattern.
High Work Rates
Tall beaters deliver massive output for high work rates.
Manure spreader for farms
The Manure Spreader is mainly used for livestock manure spreading in field, suitable for use in various large-scale farm fields, effective, uniform spreading and low cost.
Product Specifications:
we have three type:
1.Vehicle-mounted type: 3-20 cubic meters, disc or double-vertical auger can be customized
2. PTO disc type: 6-30 cubic meters can be customized
3. PTO double-vertical auger type: 6-30 cubic meters can be customized
Manure spreader feature:
1. Low Center of Gravity and High Efficiency
This vehicle features tires positioned on both sides of the compartment, with a platform height of 1150 mm. Its low center of gravity facilitates easy loading, ensuring high spreading efficiency, stable operation, and fast travel.
2. Even Distribution and Wide Spreading Range
Equipped with two vertical spiral crushing and spreading rods, this manure spreader quickly and evenly disperses fertilizer to the rear. It boasts strong crushing capabilities and a spreading width of 8-12 meters, efficiently handling manure and sludge with up to 80% moisture content.
3. Excellent Adaptability with Ground Preservation
The spreader’s running mechanism employs a rigid half-axle independent suspension, allowing the double-bridge wheels to pivot independently according to terrain. Its wheelbase is tailored to ridge spacing, ensuring no delays in movement and preventing ground damage.
4. Large Capacity and Minimal Residual Volume
The box features an inverted trapezoidal design for optimal fluidity and minimal material waste. The fence height can be increased by 200-350 mm, allowing for an additional 2-3 m³ of volume.
5. High-Quality Imported Gearbox and Transmission
The auger fertilizer spreader is equipped with both an imported gearbox and transmission, ensuring superior quality and reliable performance.
6. Durable Crushing Blade and Conveyor Chain
The crushing blade is crafted from wear-resistant boron steel, while the conveyor utilizes a high-strength mining round link chain for exceptional durability.

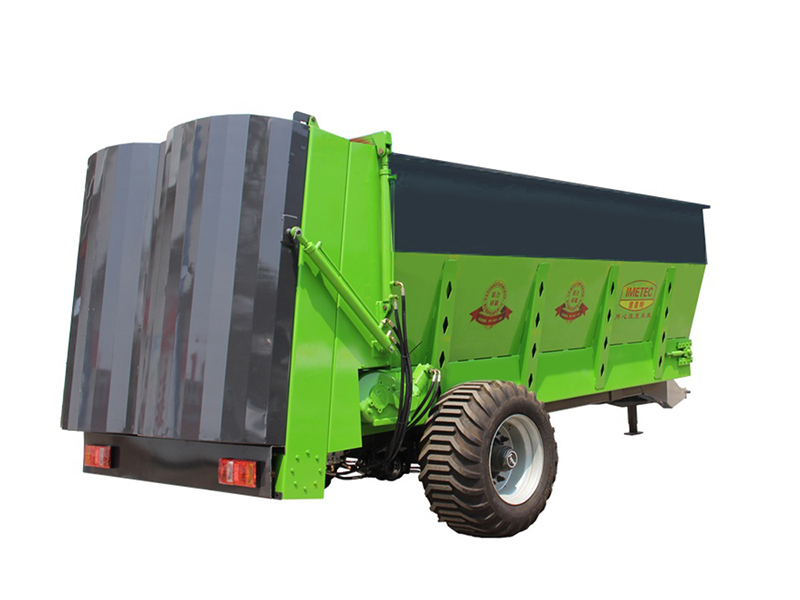

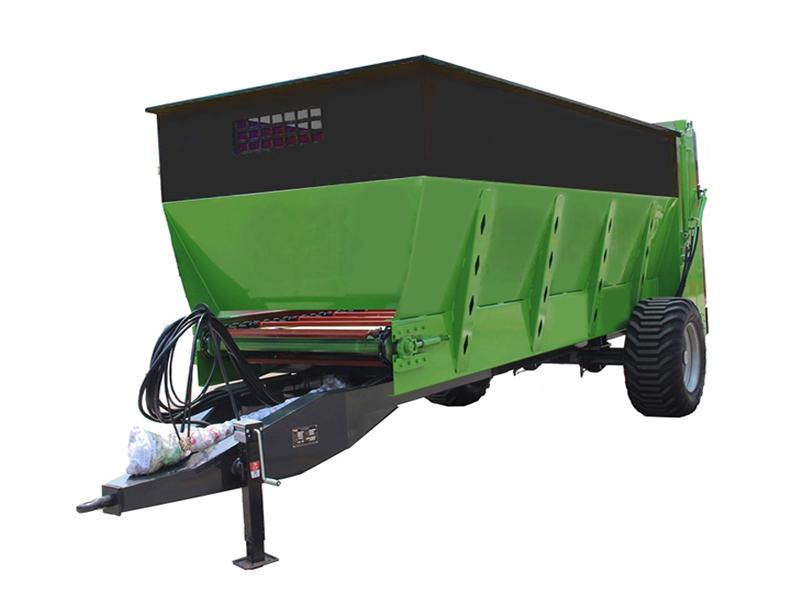

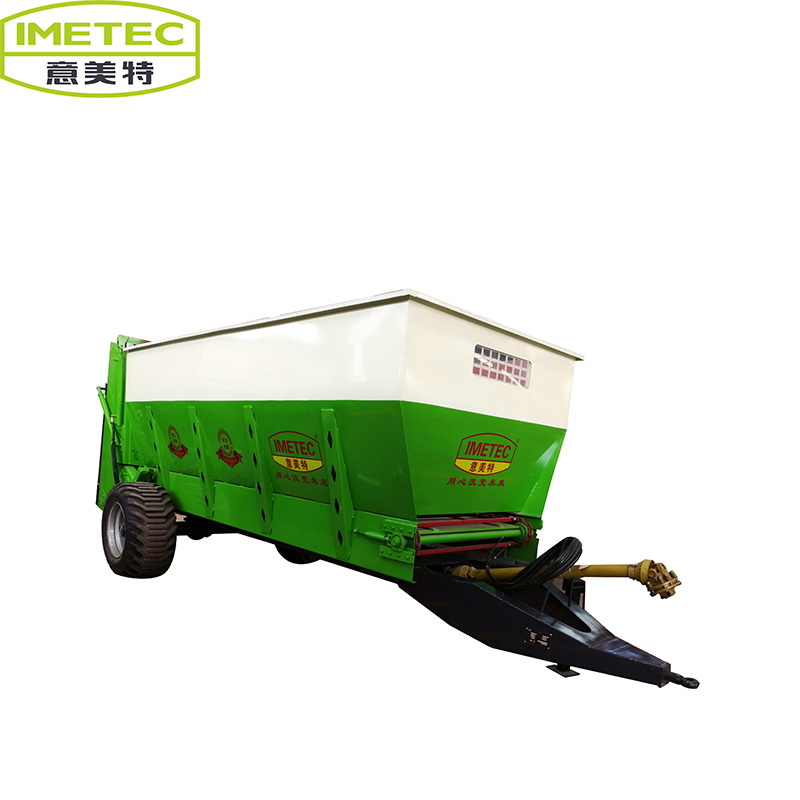

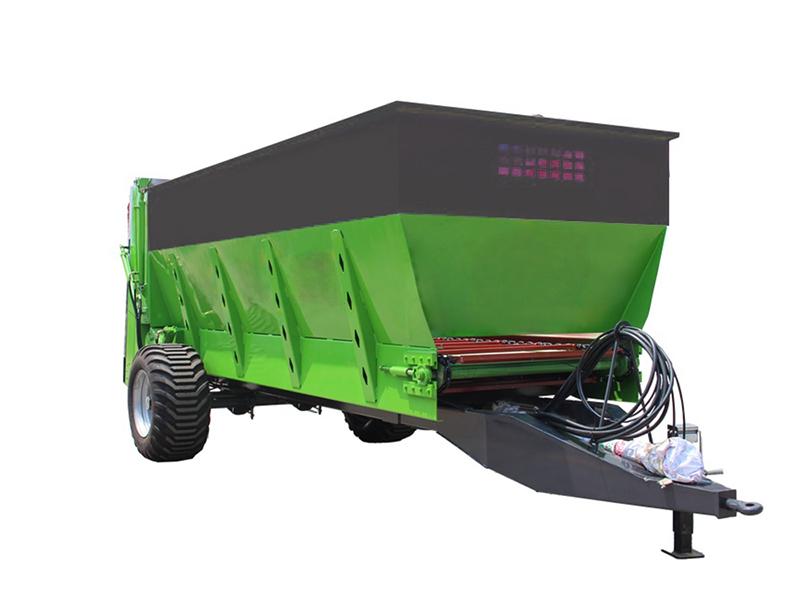

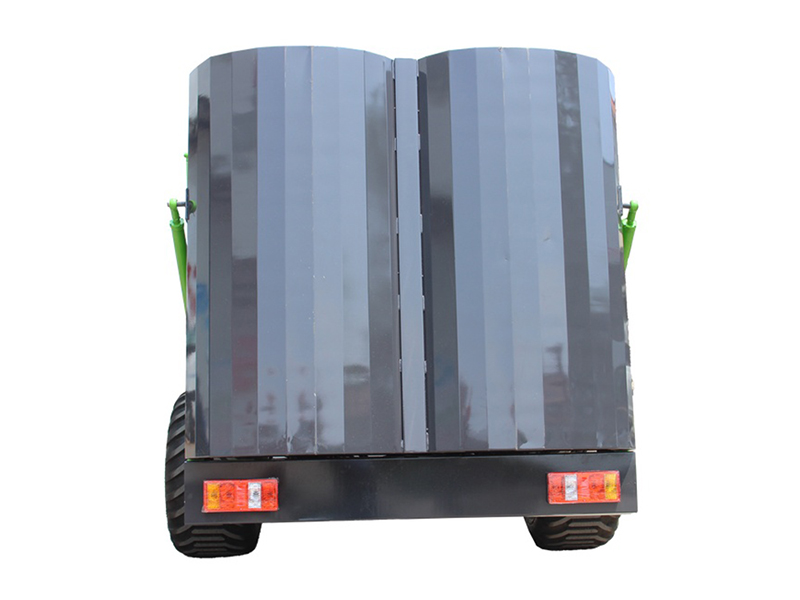

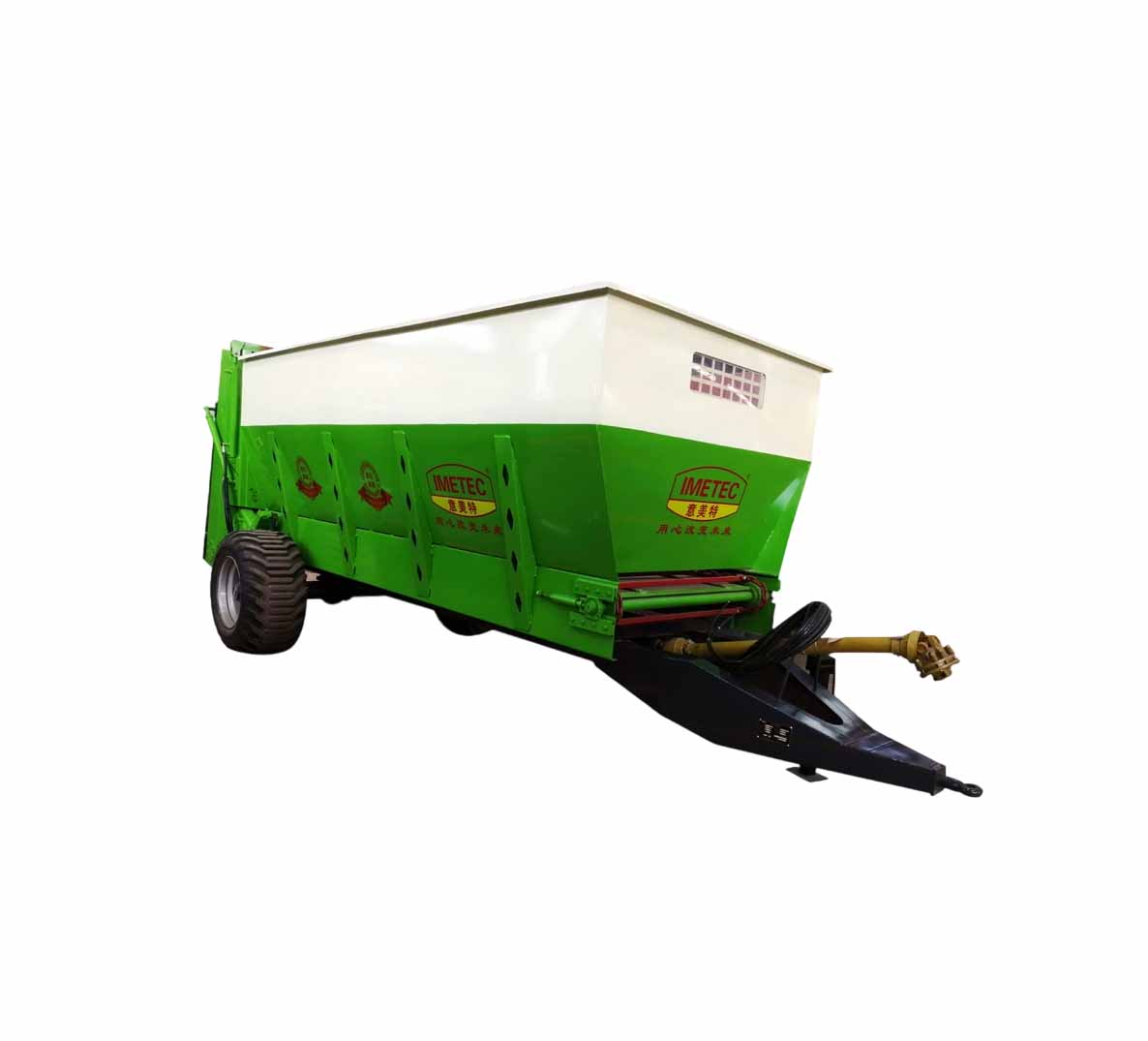

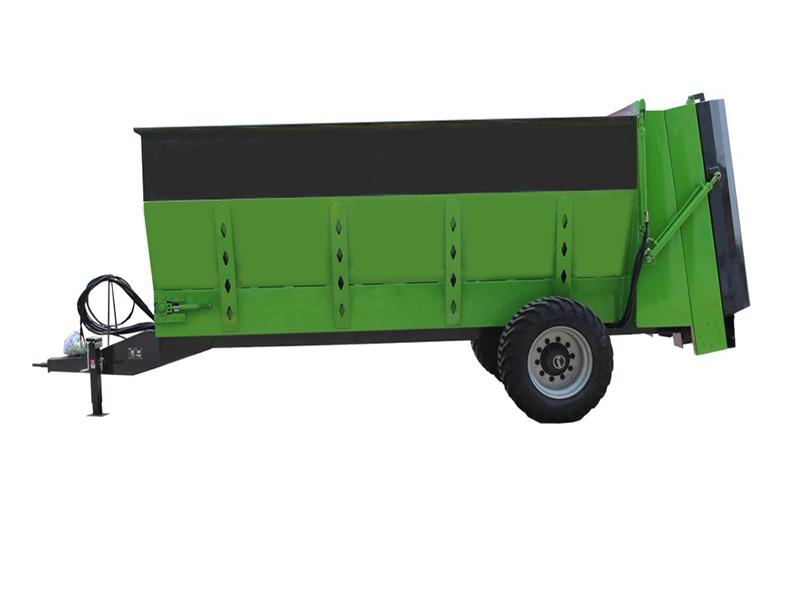

Pictures:
Product Parameters:
| MODEL | 9GPS-16 Manure Spreader |
| CAPACITY | 16m³ |
| TYPE | Trailed |
| NECESSARY POWER REQUIRED | 150 Hp-220Hp |
| METAL CUTTING | Laser |
| BOTTOM CHAIN | Special high strength brand Chains |
| CHAIN UNIT | 2 Chains in 2 rows |
| ACTION | Hydraulic GearBox |
| FOOTS | Special strong Chassis |
| CHASSIS | Reinforcement connections |
| Wheels Type | 600/55-26.5 |
| Brake System | Hydraulic |
| SPREADING UNIT | |
| ACTION TRANSMISSION | 540 Rev/Min by PTO Shaft from Tractor |
| AUGERS | 2 Unit Spreader Augers |
| DOOR | Sliding door For free the manure |
| COVER | Cover for close Augers during Road transport |
