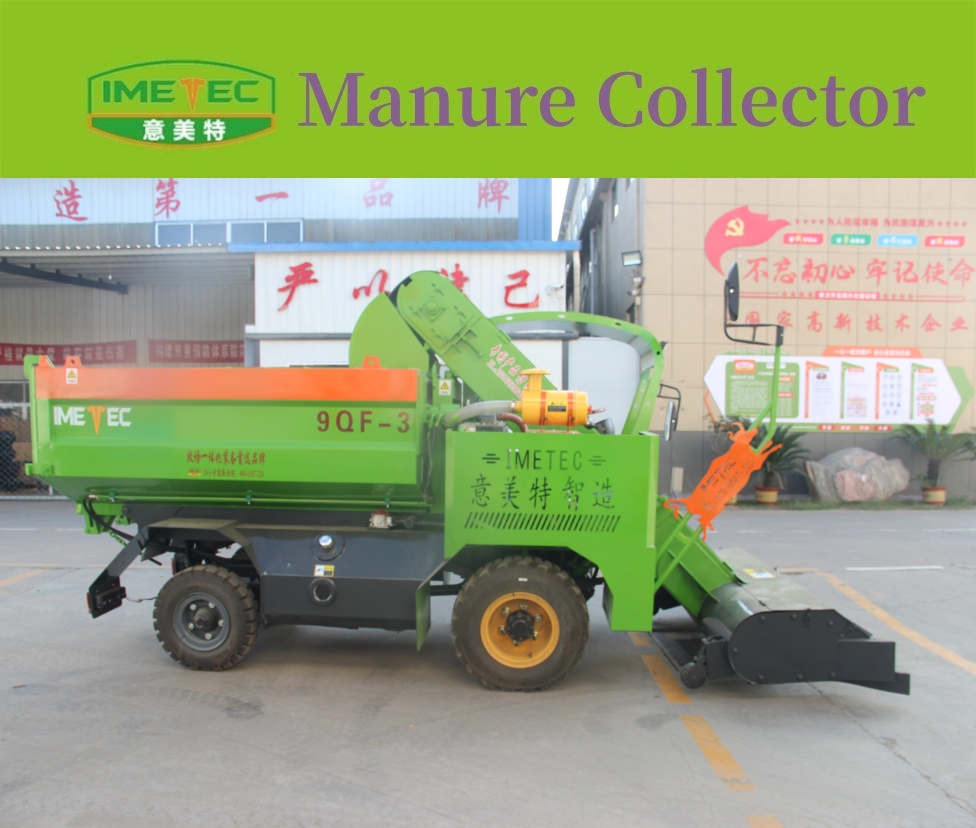

Manure Collector

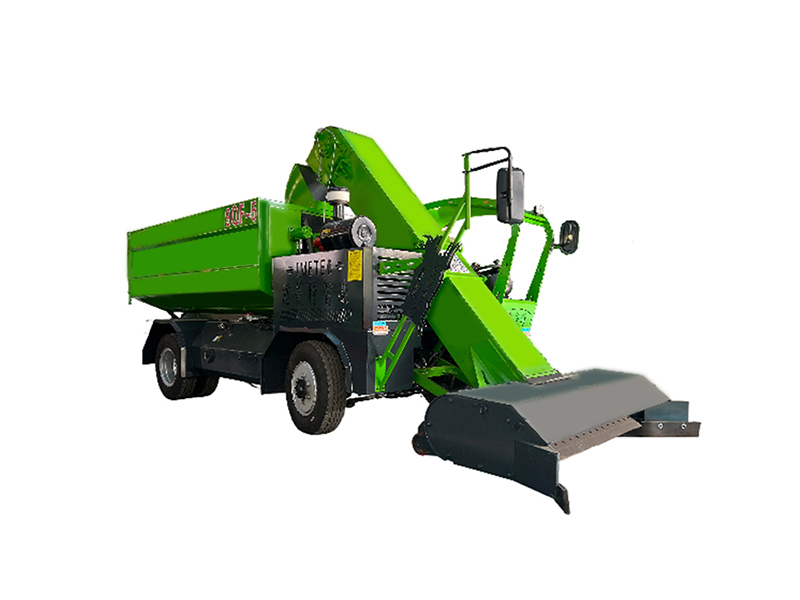

Cow dung cleaning machine

This 3CBM cow dung cleaning machine is a pasture manure cleaning equipment specially designed for pasture manure cleaning. After continuous research and development and experiments, combined with actual pasture operation and use,  manure cleaning vehicle is suitable for both dry and thin manure on pastures.


Contact Now
Product Details

Product Overview

  • The 3CBM manure cleaning truck is driven by a diesel engine and is mainly used for livestock manure collecting in farms such as cowsheds and pig farms. This 3CBM manure cleaning truck is mainly designed for small and narrow manure channels, width is about 1.7 meters and height can be tailor made as request.

  •  There are two types: two-wheel drive and four-wheel drive. Two wheel is easy to turn around and four wheel one is suitable for complicated muddy roads or passages.


Product Features

1. This manure collector can hold about 2.5cbm manure. The manure cleaning truck integrates the manure collection and transportation together, and directly transports the collected manure to the sewage discharge point without the need to add pipelines and transportation vehicles.

2. 3CBM collector is suitable for 1-300cows farm or small passages and other cattle farm manure cleaning trucks with different parameters according to different planning of ranches.

3. The manure cleaning truck system does not need to make up for the rated new water, which is convenient for later manure treatment and environmental protection.

4. Since the manure cleaning truck does not involve pipeline transportation during the manure transportation process, there is no pipeline blockage problem, and the failure rate of the entire manure system is reduced.

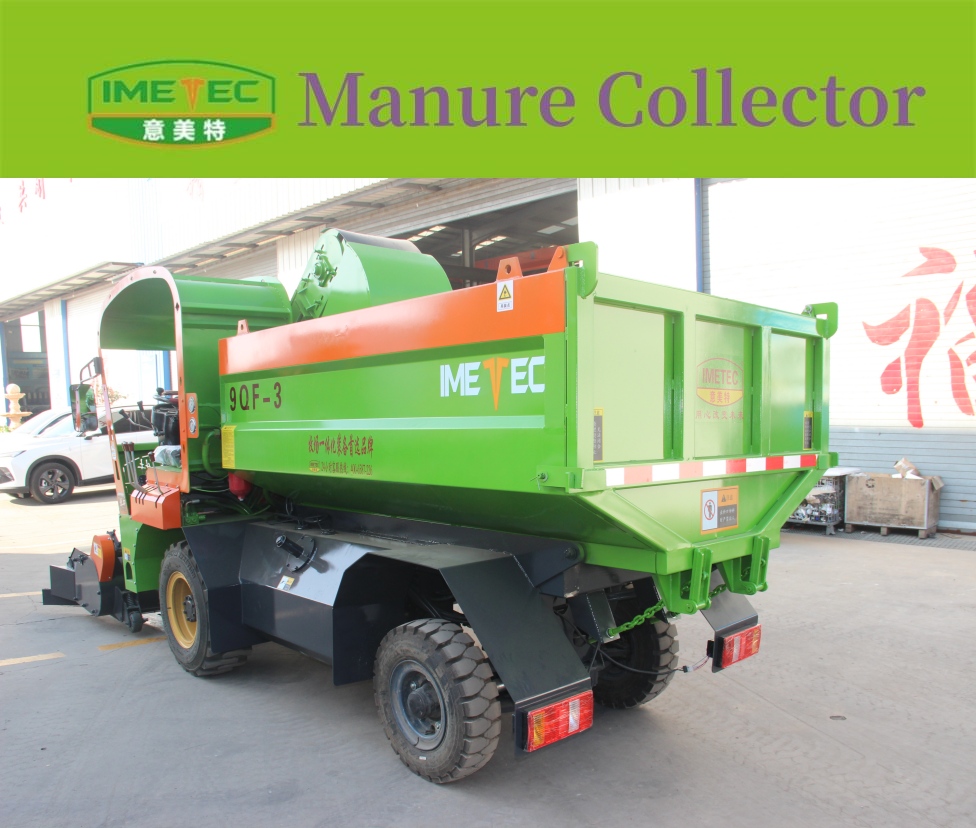

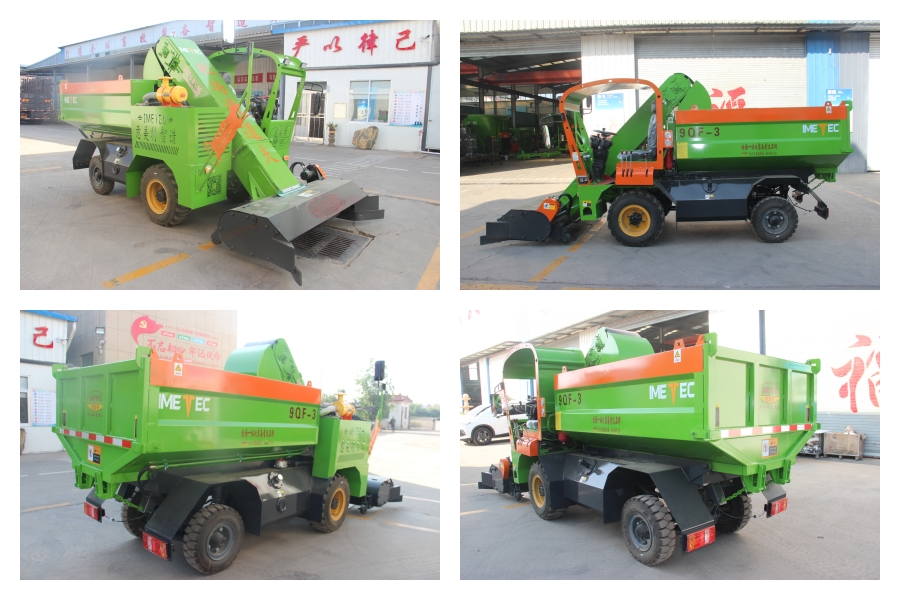

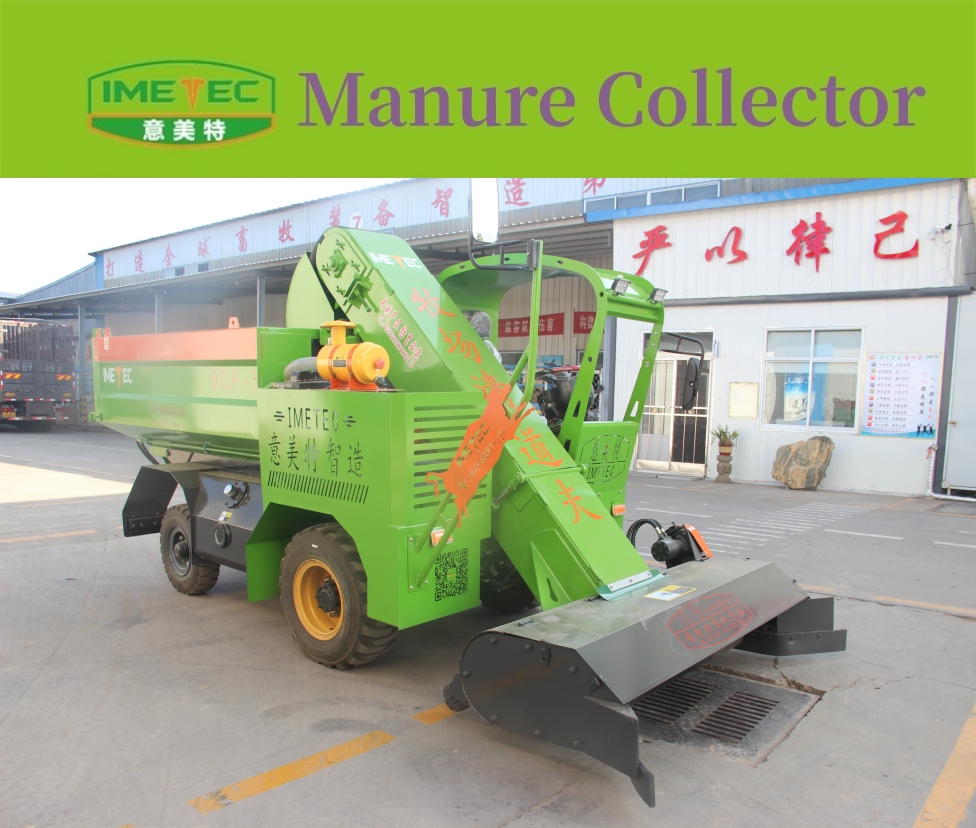

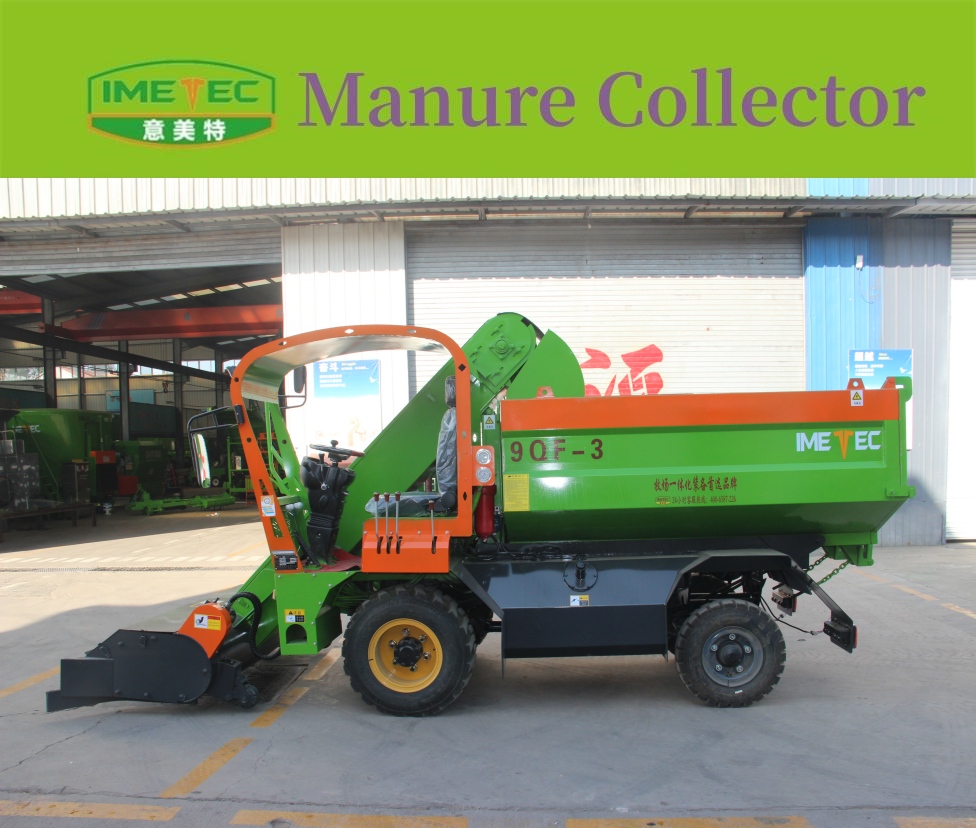

Manure Collector

Product Parameters:


Item3CBM--VDT 2WD3CBM-VDT 4WD3CBM-Manual transmission
Model9QF-39QF-39QF-3
Size L*W*H(cm)520*220*240520*220*240520*220*240
Driving wayFront drive, rear driving4WDFront drive, rear driving
Material4mm thickness   Q355B Steel4mm thickness   Q355B Steel4mm thickness   Q355B Steel
EngineYunnei 490Yunnei 490Yunnei 490
Power42kw 57hp42kw 57hp42kw 57hp
Walking WayHydraulic controlledHydraulic controlledHydraulic controlled
Collecting SystemAuger and Scraper combined and chain transmission lifting upAuger and Scraper combined and chain transmission lifting upAuger and Scraper combined and chain transmission lifting up
Discharge SystemHydraulic jacks, automatic discharge without physical contactHydraulic jacks, automatic discharge without physical contactHydraulic jacks, automatic discharge without physical contact
Tyre Number4pieces4pieces4pieces
ChassisSelf MadeSelf MadeSelf Made
Capacity3CBM3CBM3CBM
Applicable FarmCow/CattleCow/CattleCow/Cattle
PowerDiesel EngineDiesel EngineDiesel Engine
FunctionCollector Manure/Dung Collector Manure/Dung Collector Manure/Dung
